Model: Q7
4 times clear than standard definition display
Pixel Zoom
Creatively integrated Pixel Zoom function into Q7, which can enlarge and move the selected area and make details of the image much more Integrated New Advanced Functions

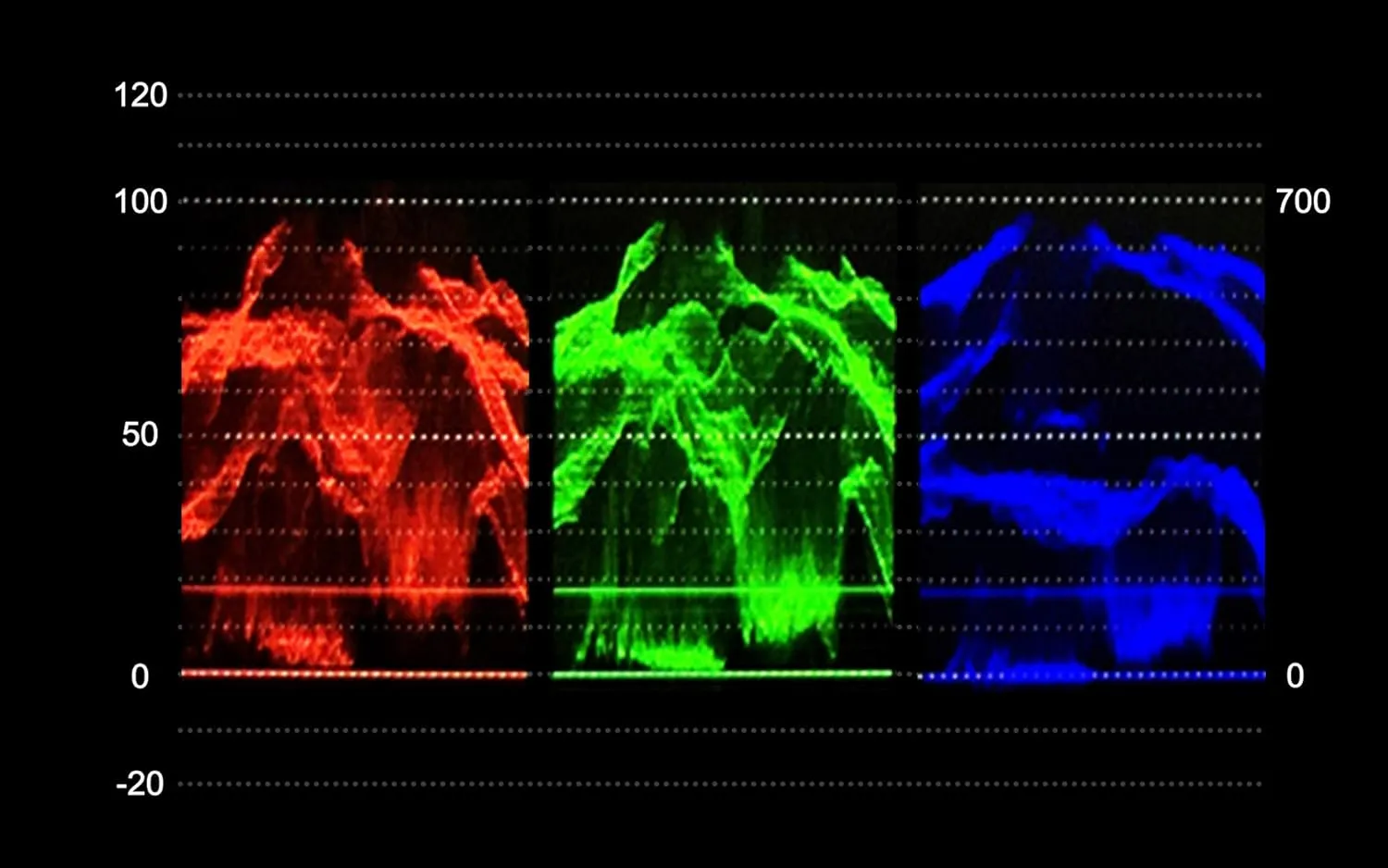

Lilliput creatively integrated column (YRGB peak), time code, waveform, vectorscope & audio level meter into field monitor. And multiple modes for optional.
Waveform PiP mode Waveform Y - enlarged horizontally mode Full-screen mode
Metal Housing Design
Thinner (22mm) with a firm metal body, makes better protection from vibration, drop & bad environment outside. Longer lifetime for the device.
SDI and HDMI Cross Conversion
With high-quality HDMI & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently.
The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.
DISPLAY
Display Screen 7" 8bit IPS
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 500cd/m2
Contrast 1000:1
Viewing Angle 170°/170°(H/V)
INPUT:3G-SDI x1 ;HDMI x1
OUTPUT:3G-SDIx 1;HDMIx 1; AUDIO
Speaker x1
Ear Phone Slotx 1
SDI FORMAT:
SMPTE-125M 480i(59.94)
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.9
What's in the package:
Shoe mount for DSLR X1
F970 and LP-E6 battery plate x1 each
Mount plate bracket x1
Mini HDMI cable A-C X1
VESA Battery bracket x1
Free gift: V-mount battery plate
